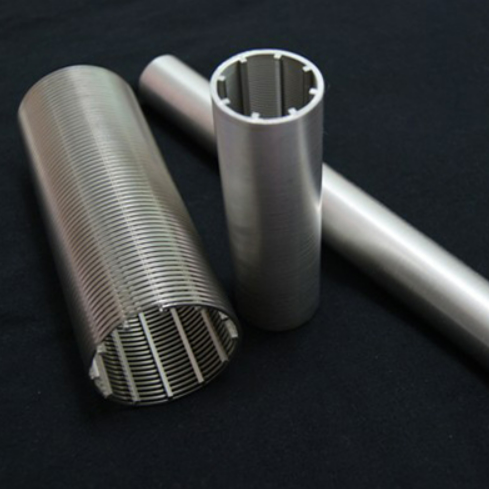

Our New Adventure -V Shaped Mesh Filter Sieve Tube

Filter material: stainless steel 302, 304, 316, 304L, 316L screen wire or low-carbon steel galvanized wire.

Outer diameter: 25mm-150mm

Gap: 0.025mm --3mm

Standard length: 50mm-6000mm

End connection: threaded pipe head or direct pipe head

Screen wire specifications: commonly used wire winding specifications 1 * 2mm correspond to 2 * 3.0mm reinforcing bars, and other specifications can be customized in advance

3.8mm/22 pieces, 3.8mm/32 pieces, 3.8mm/48 pieces, 3.8mm/50 pieces

Product Features:

1. The application of trapezoidal wire forms a V-shaped opening between the gaps of the sieve tube. This design form operates more efficiently than other forms of products, ensuring the smoothness of water resource filtration.

The trapezoidal wire continuous winding forms continuous high-density uniform gaps on the support wires arranged in a circular pattern, ensuring the opening area and non blocking of the screen tube, and avoiding high-density accumulation of sediment, providing assurance for improving production efficiency and extending the service life of water wells.

2. The wire winding and all supporting wires are connected by welding, which is sturdy and durable, and has a longer working life cycle.

3. The longitudinal arrangement of support wires and the continuity gap form of screen tubes designed according to actual needs make the product have higher compressive performance.

4. The various advantages and performance of this product have improved the working efficiency and service life of water wells, making it a leader in water resource filtration equipment.

Note:

1. This product can be customized with different specifications and raw materials (mainly stainless steel and carbon steel) according to the actual needs of customers, ensuring reasonable investment and saving production costs.

2. The sieve tube connection can also be made according to different needs.

3. Non stainless steel products can form a protective layer through galvanizing or plastic spraying treatment. Beautiful and clean appearance.

4. Packaging can be made according to customer needs.

5. This product is widely used in industries such as oil and gas industry, chemical industry, papermaking, water treatment, etc.
