stainless steel plain weave wire mesh

Product introduction

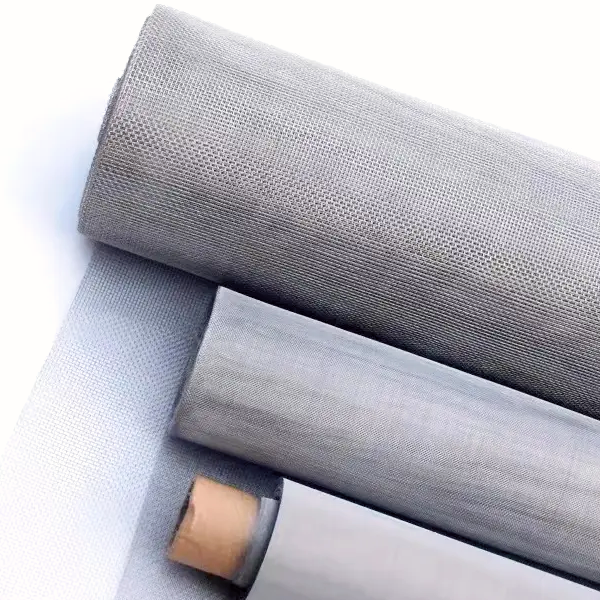

Stainless steel wire mesh is made by stainless steel wire,Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.

Stainless steel woven wire mesh comes in different types, each designed to cater to specific needs and requirements.

Plain weave wire mesh, where the wires are woven in an over-and-under pattern, creating a square opening.

This type provides excellent stability and a high level of filtration accuracy, making it ideal for fine particle separation, insect screens, and sieving applications.

Knowledges of wire mesh

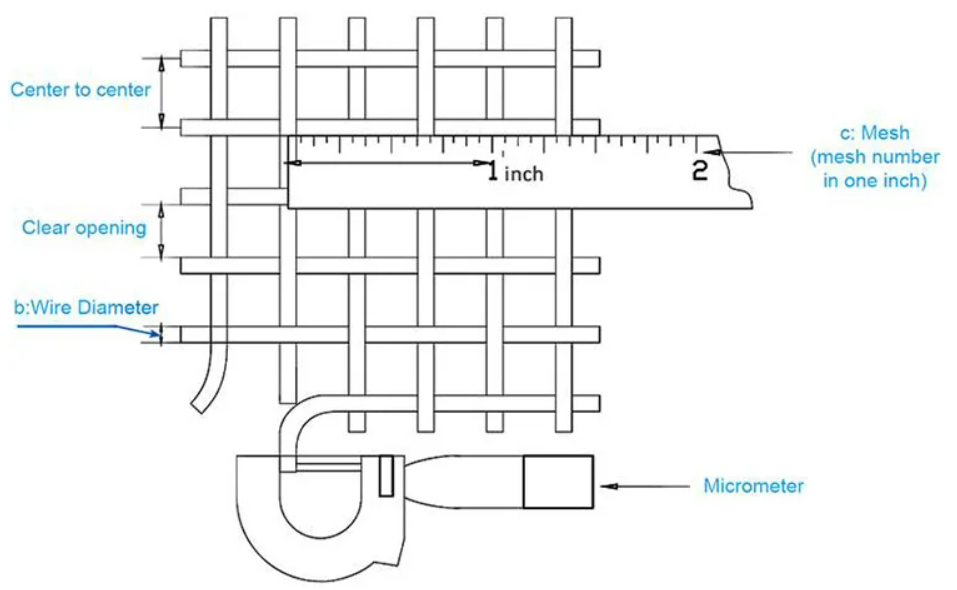

1. Mesh Count = 25.4mm/D+A

2. Aperture= 25.4mm/Mesh count - Diameter

3. % Open Area= A/(A+D)² X 100%

4. Micron= Aperture(mm) X 1000

5.Mesh – The number of openings per lineal inch.

6.Aperture- The distance between two adjacent wires

7.Diameter- The thickness of the wire before weaving

8.% Open Area- The ratio of the area of the aperture to the area of the

9.mesh expressed in percentage terms

10.Warp- All wires running lengthwise of the cloth as woven

11.Weft- All wires running across the cloth as woven
